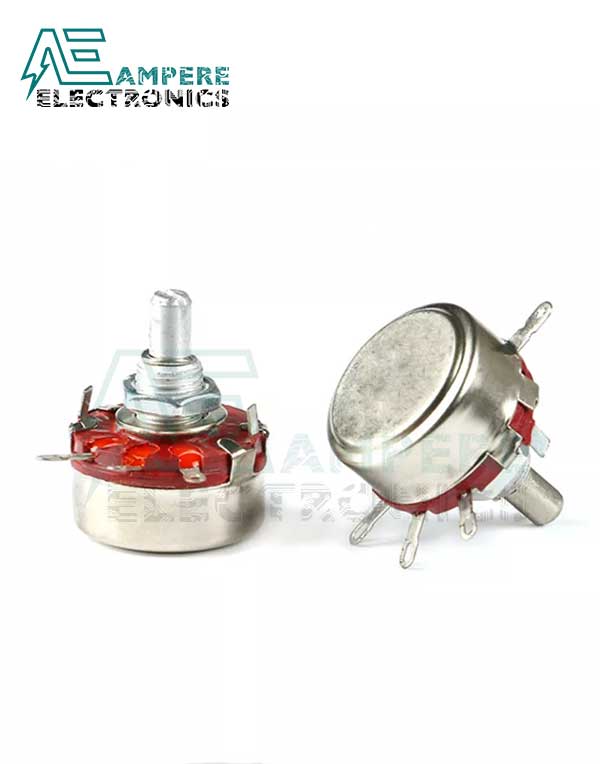

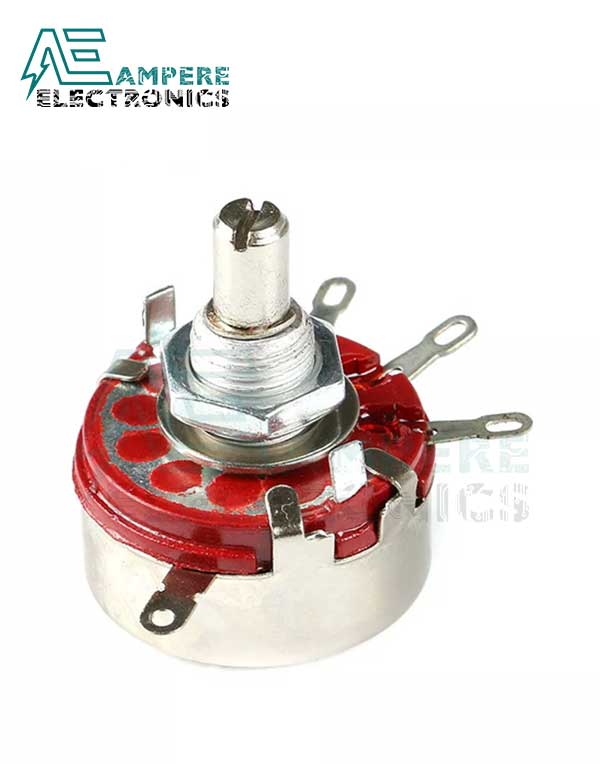

10Kohm Rotary Potentiometer, WTH118

10Kohm Rotary Potentiometer, WTH118

  • Shaft Diameter: mm.
  • Mount hole diameter: 10mm.
  • Shaft Length: 19mm
  • Dimensions
    • Length: 28mm
    • Width: 14mm
    • Hight: 42mm
  • Mechanical Rotation Angle. = 300?
  • Electrical Rotation Angle. = 280?
SKU: 26131
shield

Safe shopping

Your data is always protected

Sale_coupon_15

85,00EGP

In stock

In stock

18 People watching this product now!
  • shop Pick up from the Store

Everyday from 9 AM to 7 PM

  • aramex ARAMEX DELIVREY

2-3 Days

Total fees when checkout

  • product-return Return within 14 days

Payment Methods:

Description

10Kohm Rotary Potentiometer, WTH118

  • Shaft Diameter: mm.
  • Mount hole diameter: 10mm.
  • Shaft Length: 19mm
  • Dimensions
    • Length: 28mm
    • Width: 14mm
    • Hight: 42mm
  • Mechanical Rotation Angle. = 300?
  • Electrical Rotation Angle. = 280?

Specifications:

Attribute Value
Potentiometer Type Rotary
Maximum Resistance 10K?
Number of Gangs 1
Power Rating 2W
Electrical Taper Linear
Element Material Conductive Plastic
Mounting Type Panel Mount
Termination Style Solder Lug
Shaft Length 19 mm
Shaft Diameter 6 mm
Series 53C
Actuator Type Slotted Shaft
Tolerance ?10%



Package Includes:

  • 1x Potentiometer

Product Datasheet:
