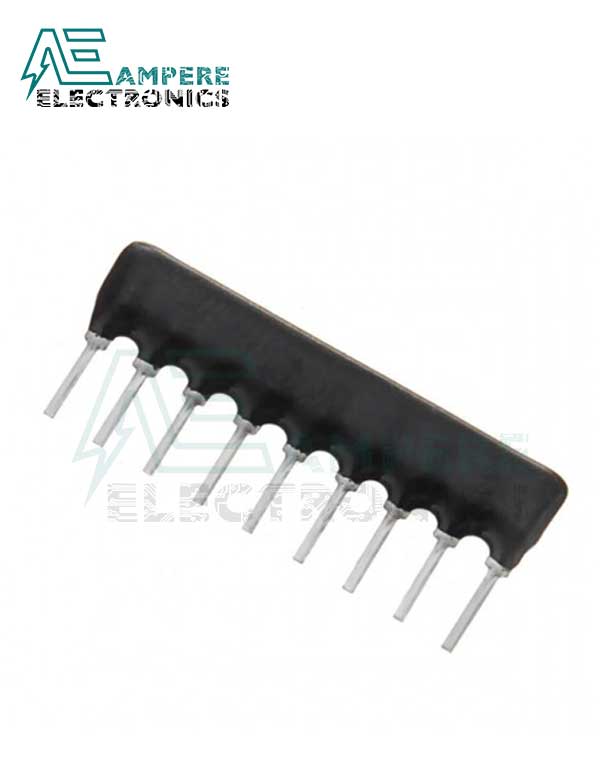

4.7KOhm Network Resistors 9Pin
4.7KOhm Network Resistors 9Pin
Array resistors have a broad resistance range and are suitable for a range of applications. Constructed from a flame retardant epoxy resin body, these network resistors offer protection against shock, heat and moisture.
- Low profile
- Range of pin packages enables you to be flexible with your designs
- Marking on contrasting background enables permanent identification
Safe shopping
Your data is always protected
Sale_coupon_15
5,00EGP
In stock
In stock
16
People watching this product now!
-
Return within 14 days
Payment Methods:
Description
4.7KOhm Network Resistors 9Pin
Array resistors have a broad resistance range and are suitable for a range of applications. Constructed from a flame retardant epoxy resin body, these network resistors offer protection against shock, heat and moisture.
- Low profile
- Range of pin packages enables you to be flexible with your designs
- Marking on contrasting background enables permanent identification
Specifications:
| Attribute | Value |
| Resistance | 4.7KΩ |
| Resistor Type | Network |
| Number of Resistors | 8 |
| Package/Case | SIP |
| Power Rating | 1W |
| Termination Style | Through Hole |
| Tolerance | ±5% |
| Case Style | Conformal |
| Power Rating per Resistor | 0.125W |
| Circuit Designator | BUS |
| Length | 23.4mm |
| Depth | 2.5mm |
| Height | 6.5mm |
| Dimensions | 2.5 x 6.5 x 23.4mm |
| Series | RKC |
| Number of Terminals | 9 |
| Temperature Coefficient | ±200ppm/°C |
| Maximum Operating Temperature | +155°C |
| Minimum Operating Temperature | -55°C |
Package Includes:
- 1x Resistor Array
