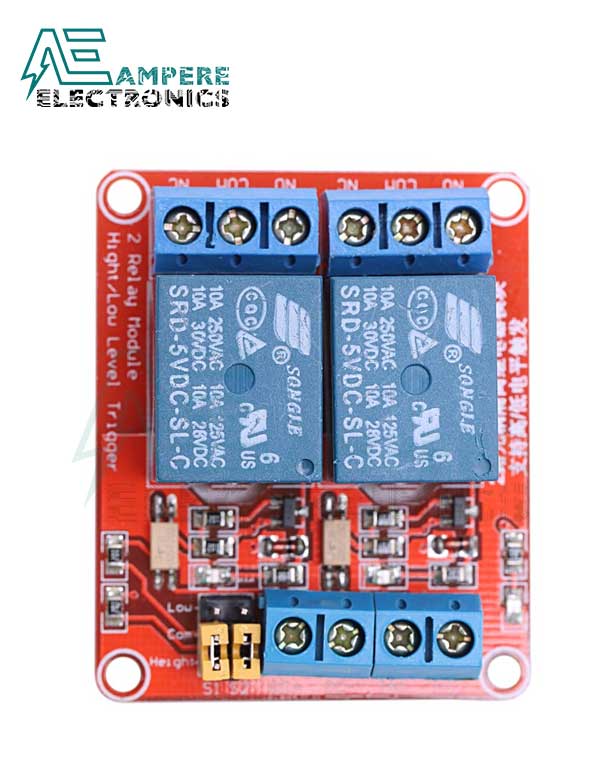

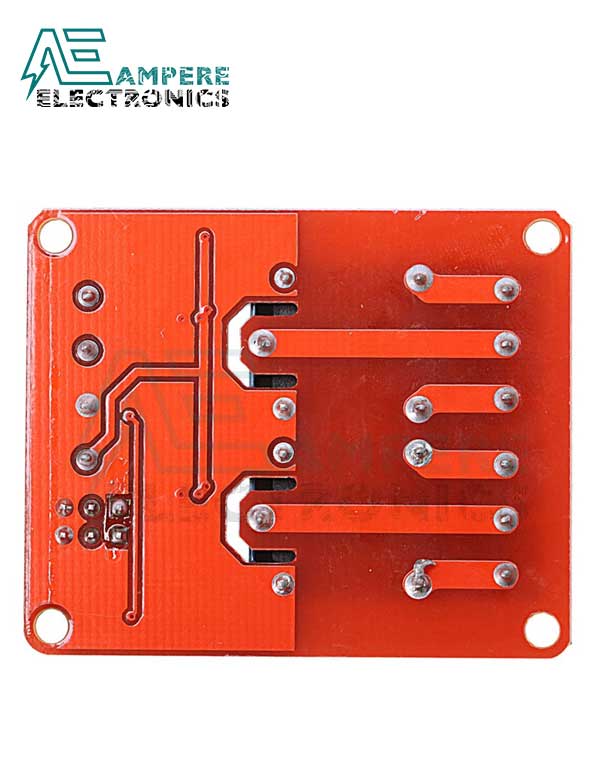

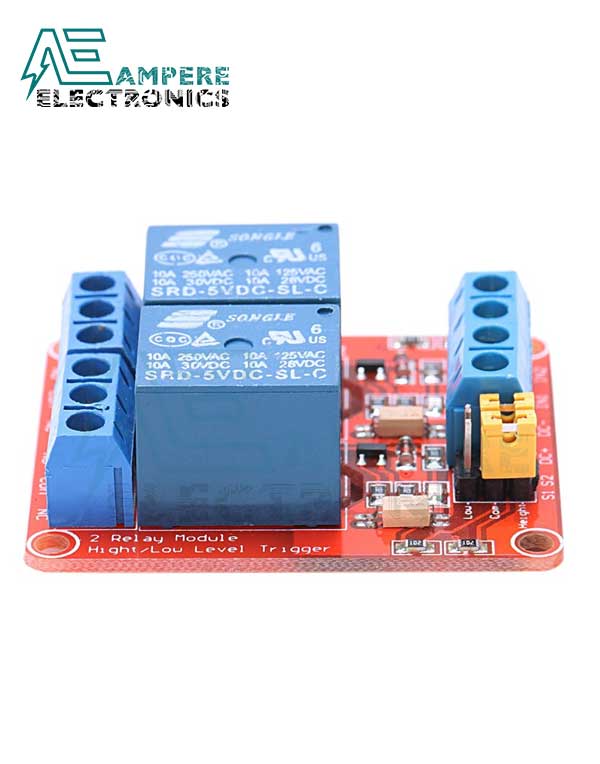

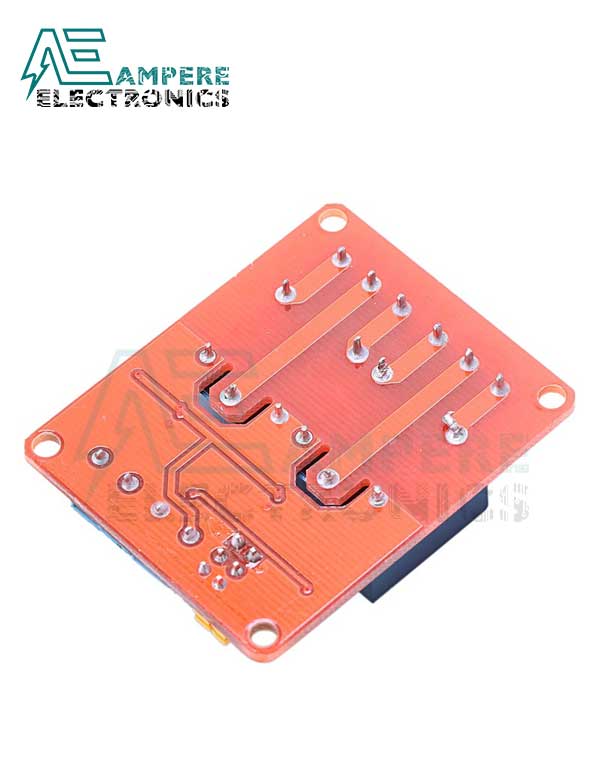

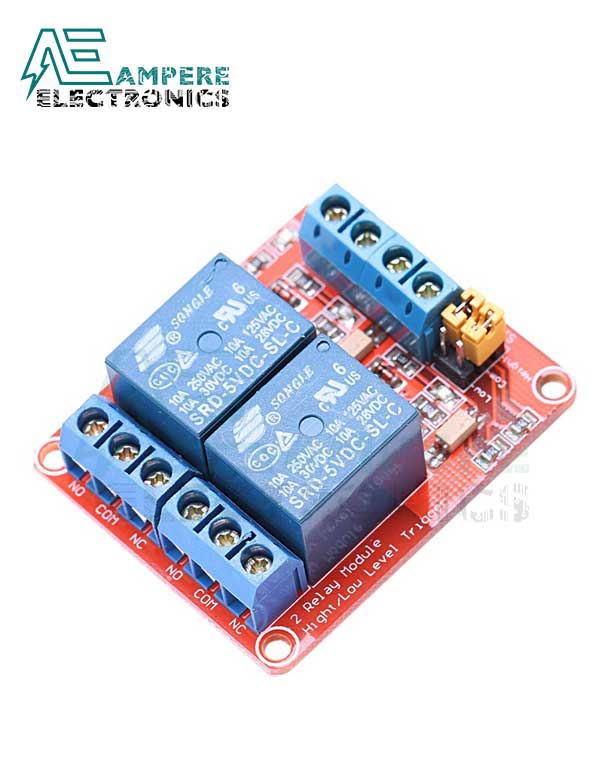

5Vdc Relay Module 2 Channel – H/L Trigger

5Vdc Relay Module 2 Channel – H/L Trigger

DC 5V, Max Load for Output: AC 250V/10A, DC 30V /10A. Trigger Current 20mA, can be used to all kinds of Single Chip Microcomputer IO control triggering, normally open and normally close two work mode. By switching the trigger level selection terminal to set 3-5V high level or 0-1.5V low-level trigger controlled. Adopting patch piece opto-isolator, green power light, red relay status light, strong drive capability, stable performance.

Trigger Mode Configuration:

The module has a trigger level selection terminal, each relay the trigger level can be individually controlled, through the short-circuit cap to control. COM side is common, in the middle; When the LOW (L) terminal is connected to the common terminal, it is a low-level trigger; when the HIGH (H) terminal is connected to the common terminal, it is a high-level trigger.

Input Interface:

• DC+: 5V positive power supply
• DC-: 5V negative power supply
• IN: corresponding with trigger signal level of relay

Output Interface:

• NO: normally open interface
• COM: common interface
• NC: normally close interface

Features/Specs:

• Work Voltage: 5VDC
• Quiescent Current: 5 mA
• Max Current: 190 mA
• Trigger Current: 3-5 mA
• Low Level Trigger Current: 0-1.5V
• High Level Trigger Current: 3-5V
• 4 Fixed Holes for Screw: Diameter 3.1mm
• Length: 41.5 mm
• Width: 50 mm
• Height: 18.5 mm

Package Includes:

• 1x 5Vdc Relay Module

Documents:

• Datasheet
