DC Motor 12V 80W 13000RPM – Model 775

775 DC Motor 12-24Vdc 20000rpm

  • Double ball bearings at both front and rear.
  • Large torque, high speed.
  • Low starting current, stable and efficient.
  • Metal outer case, anti-rust and durable.
  • Operating voltage is DC 12-24V.
SKU: 24486
shield

Safe shopping

Your data is always protected

Sale_coupon_15

420,00EGP

In stock

In stock

17 People watching this product now!
  • shop Pick up from the Store

Everyday from 9 AM to 7 PM

  • aramex ARAMEX DELIVREY

2-3 Days

Total fees when checkout

  • product-return Return within 14 days

Payment Methods:

Description

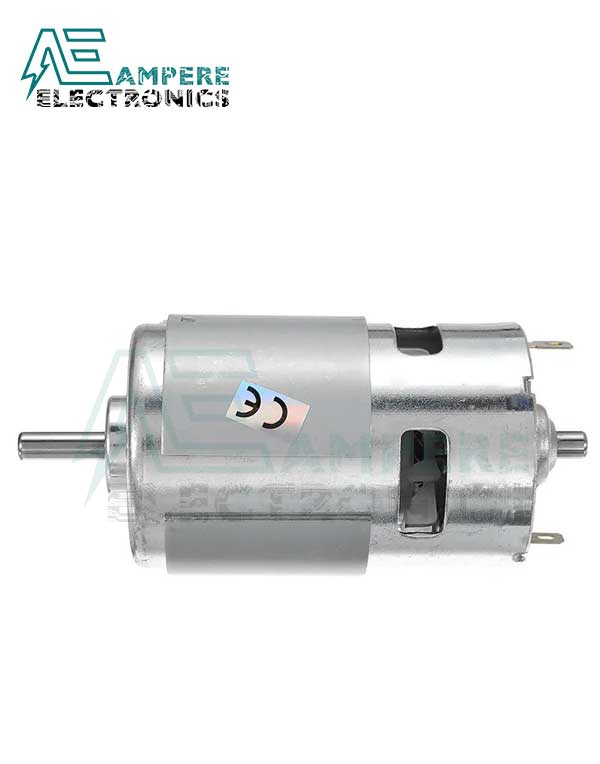

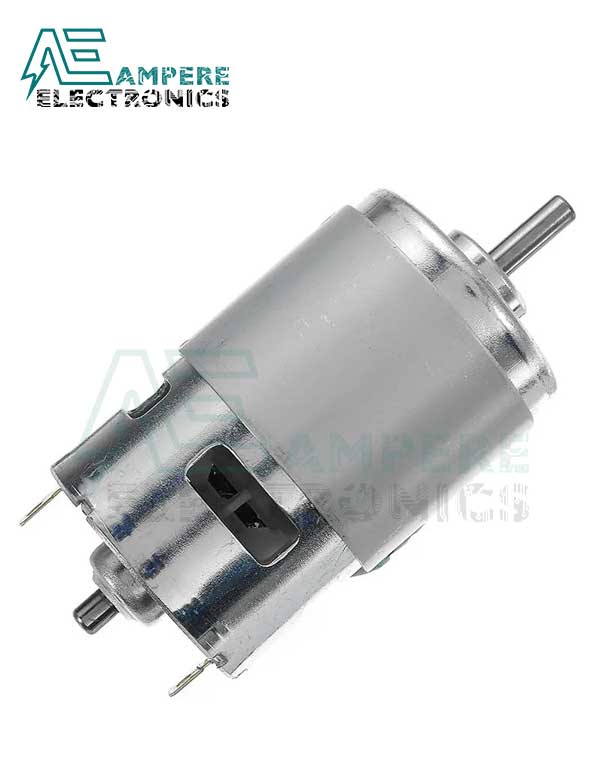

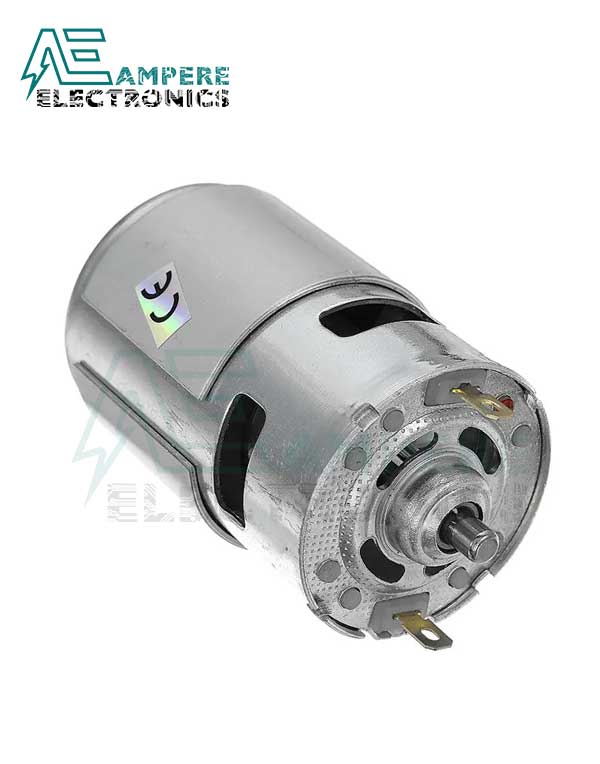

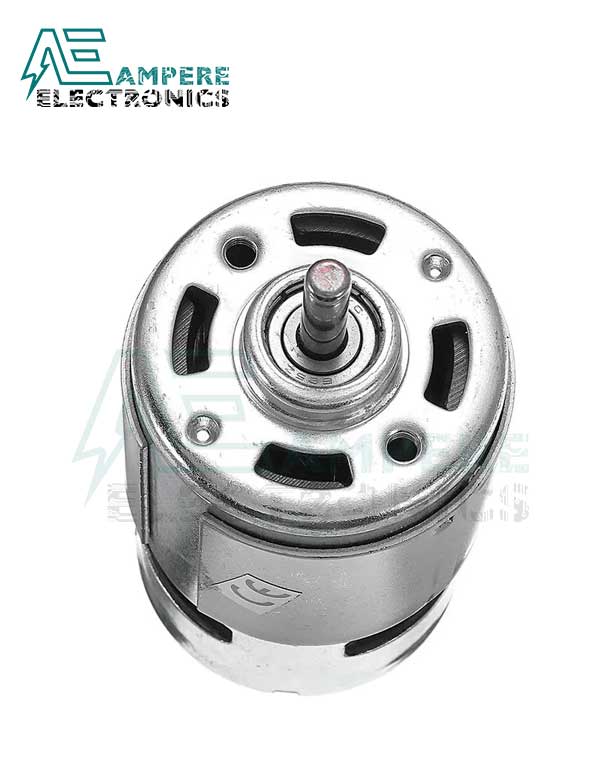

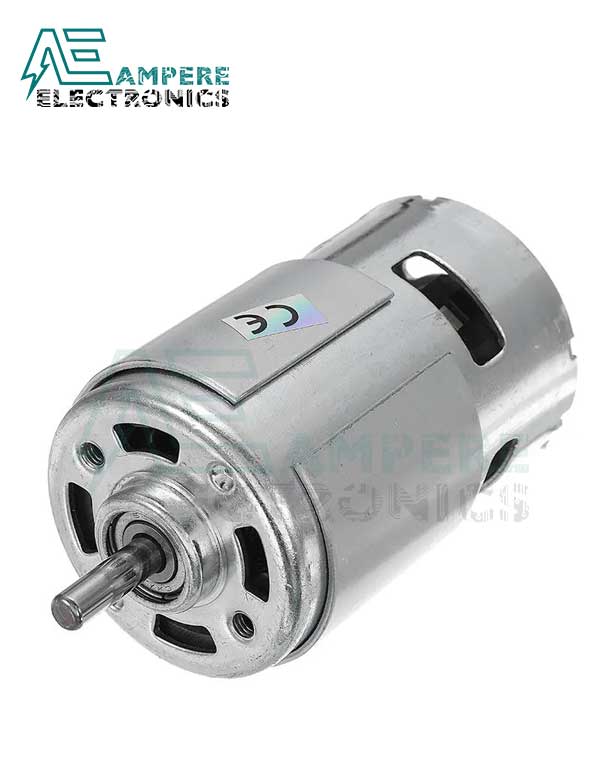

775 DC Motor 12-24Vdc 20000rpm

These 775 motors are high torque, high speed and are great for robotics, smart cars and many other applications.

  • Double ball bearings at both front and rear.
  • Large torque, high speed.
  • Low starting current, stable and efficient.
  • Metal outer case, anti-rust and durable.
  • Operating voltage is DC 12-24V.

Specification:

  • Item Type: 775 Motor
  • Measured Parameters (for reference):
  • 12V: No-load current: 0.92A, Stall current: 2.6A, No load speed: 10000rpm, load speed: 8800rpm
  • 24V: No-load current: 1.46A, Stall current: 2.9A, No load speed: 20000rpm, load speed: 17600rpm
  • Motor Step Height: 4.5mm
  • Motor Step Diameter: 17.5mm
  • Output Shaft Length: 16mm (Shaft length above the step level)
  • Shaft Diameter: 5mm
  • Motor Diameter: 42mm
  • Motor Length: 66.5mm
  • Motor Tail Step Height: Approx. 4.5mm
  • Motor Tail Shaft Length: Approx. 6.5mm
  • Mounting Hole Pitch: Approx. 29mm
  • Mounting Screw: M4 Screw

Package Includes:

  • 1x 775 DC Motor
