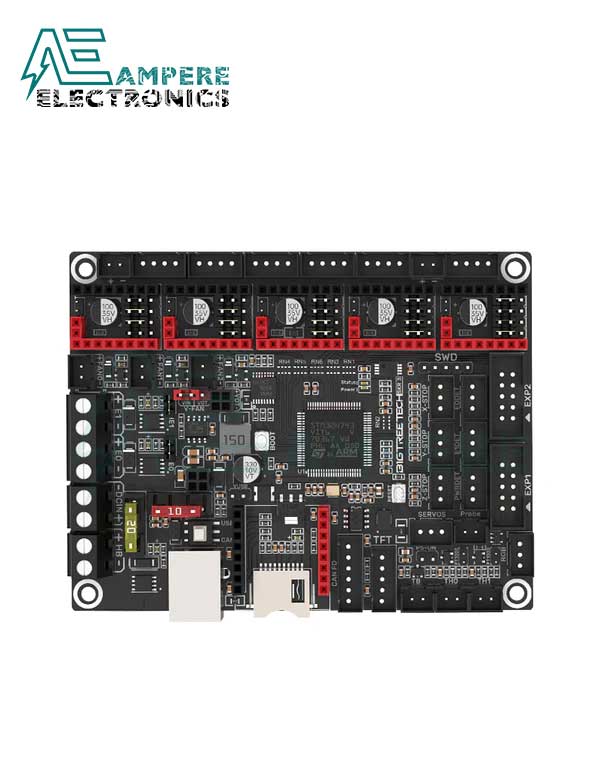

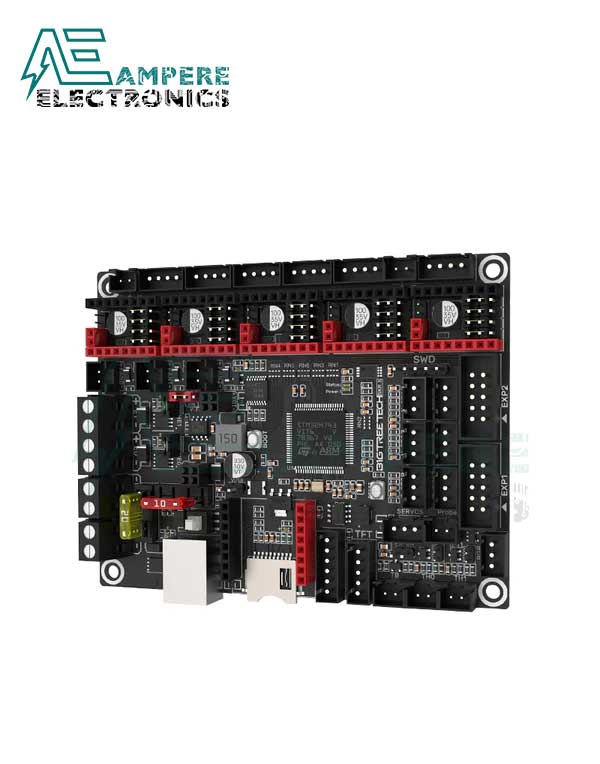

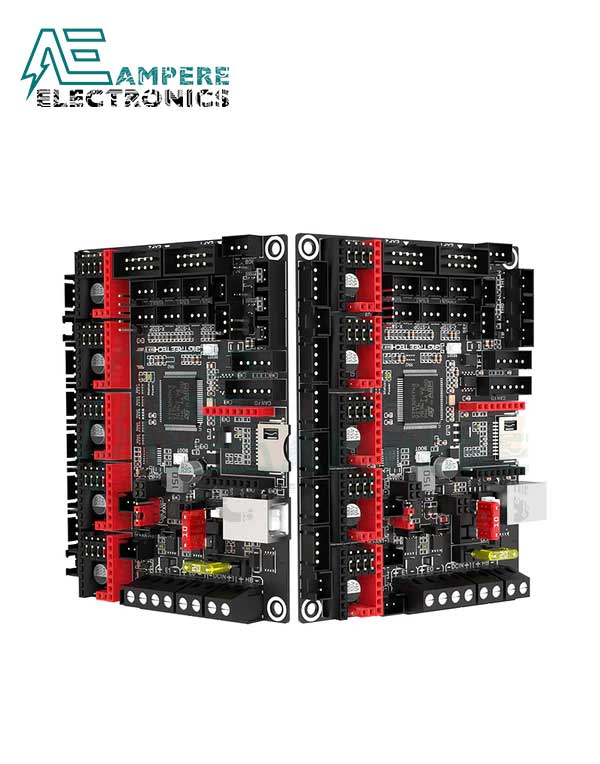

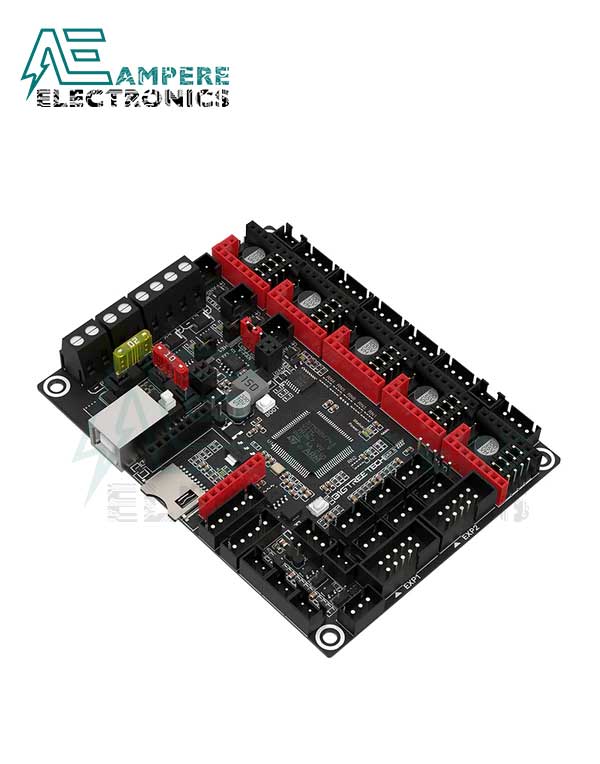

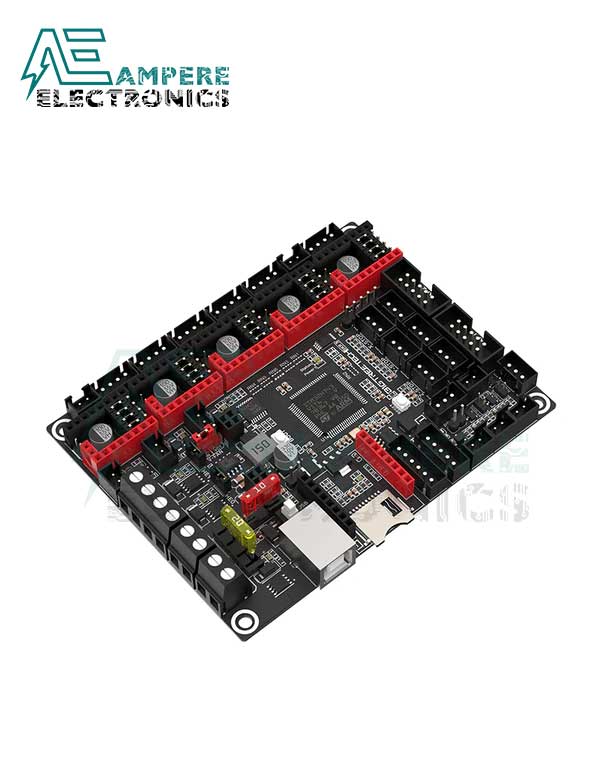

BIGTREETECH SKR 3 Control Board
BIGTREETECH SKR 3 is a successor to the SKR 2 and has many new functions. This versatile 32-bit motherboard with powerful 480 Mhz ARM Cortex-M7 is suitable for most 3D printers and offers many interfaces and upgrade options compared to most built-in motherboards.
The motherboard is compatible with Klipper and Marlin open-source firmware.
480Mhz ARM Cortex-M7
BIGTREETECH SKR 3 uses a 32-bit ARM Cortex-M7 series STM32H743VIT6 chip with a core frequency of 480MHz, providing enough performance to handle even the most demanding user interfaces while enabling stutter-free printing.
Your data is always protected
Sale_coupon_15
4.999,00EGP
In stock
In stock
Pick up from the Store
Everyday from 9 AM to 7 PM
ARAMEX DELIVREY
2-3 Days
Total fees when checkout
Return within 14 days
Payment Methods:
BIGTREETECH SKR 3 is a successor to the SKR 2 and has many new functions. This versatile 32-bit motherboard with powerful 480 Mhz ARM Cortex-M7 is suitable for most 3D printers and offers many interfaces and upgrade options compared to most built-in motherboards.
The motherboard is compatible with Klipper and Marlin open-source firmware.
480Mhz ARM Cortex-M7
BIGTREETECH SKR 3 uses a 32-bit ARM Cortex-M7 series STM32H743VIT6 chip with a core frequency of 480MHz, providing enough performance to handle even the most demanding user interfaces while enabling stutter-free printing.
DIY friendly
| Mainboard | SKR 3 | SKR 2 | SKR 1.4 |
| Main chip | STM32H743VIT6 | STM32F407VGT6 | LPC1768 |
| Core frequency | 480MHz | 168MHz | 100MHz |
| Output current | 5A | 4A | 3A |
| CNC fan | 3 (24V, 12V, 5V optional) | 3 | 1 |
| PC interface | USB | USB | USB |
| Firmware support | Marlin, Klipper | Marlin, RepRap | Marlin |
| Temperature sensor interface | 1-way 100K NTC, 2-way 100K NTC, PT1000 optional | TH0, TH1, TB, 3-Way 100K NTC (Thermistor) | TH0, TH1, TB, 3-way 100K NTC (Thermistor) |
| WiFi interface | ESP-12S, ESP-07S, ESP32 | ESP-12S, ESP-07S | ESP-01S |
| Reserved BOOT0 | Yes | no | no |
| Onboard EEPROM | Yes | no | no |
| Product size | 110x85mm |
| Installation size | 102x76mm |
| Processor | ARM Cortex-M7 CPU STM32H743VIT6 |
| EEPROM | 24C32 32-Kbit |
| Input voltage | DC12V-DC24V |
| Logic voltage | DC 3.3V |
| Firmware | Marlin, Klipper |
| WiFi interfaces | ESP-12S, ESP-07S, ESP32 |
| Fan interfaces | 3 CNC fans, 2 normal fans,Optional CNC fan voltage |
| Extension interfaces | Servos, Probe, PS-ON, PWR-DET, Fil-DET, CAN FD |
| Motor drivers | TMC5160, TMC2209, TMC2225, TMC2226, TMC2208, TMC2130, ST820, LV8729, DRV8825, A4988, etc. |
| Driver working modes | SPI, UART, STEP/DIR |
| Motor driver outputs | X, Y, Z (Dual Z-axis), E0, E1, five-way |
| Heating interface | Heated bed (HB), heating cable (E0, E1) |
| Temperature sensor interface | 1-way 100K NTC, 2-way 100K NTC, PT1000 optional |
| PC interface | USB |
| File format | Gcode |
| 3D printer setup | XYZ, Delta, Kossel, Ultimaker, Corexy |
| Recommended software | Cura, Simplify3D, Pronterface, Repetier-host, Makerware |
| Screen | Serial touch screen, SPI touch screen, LCD display |
