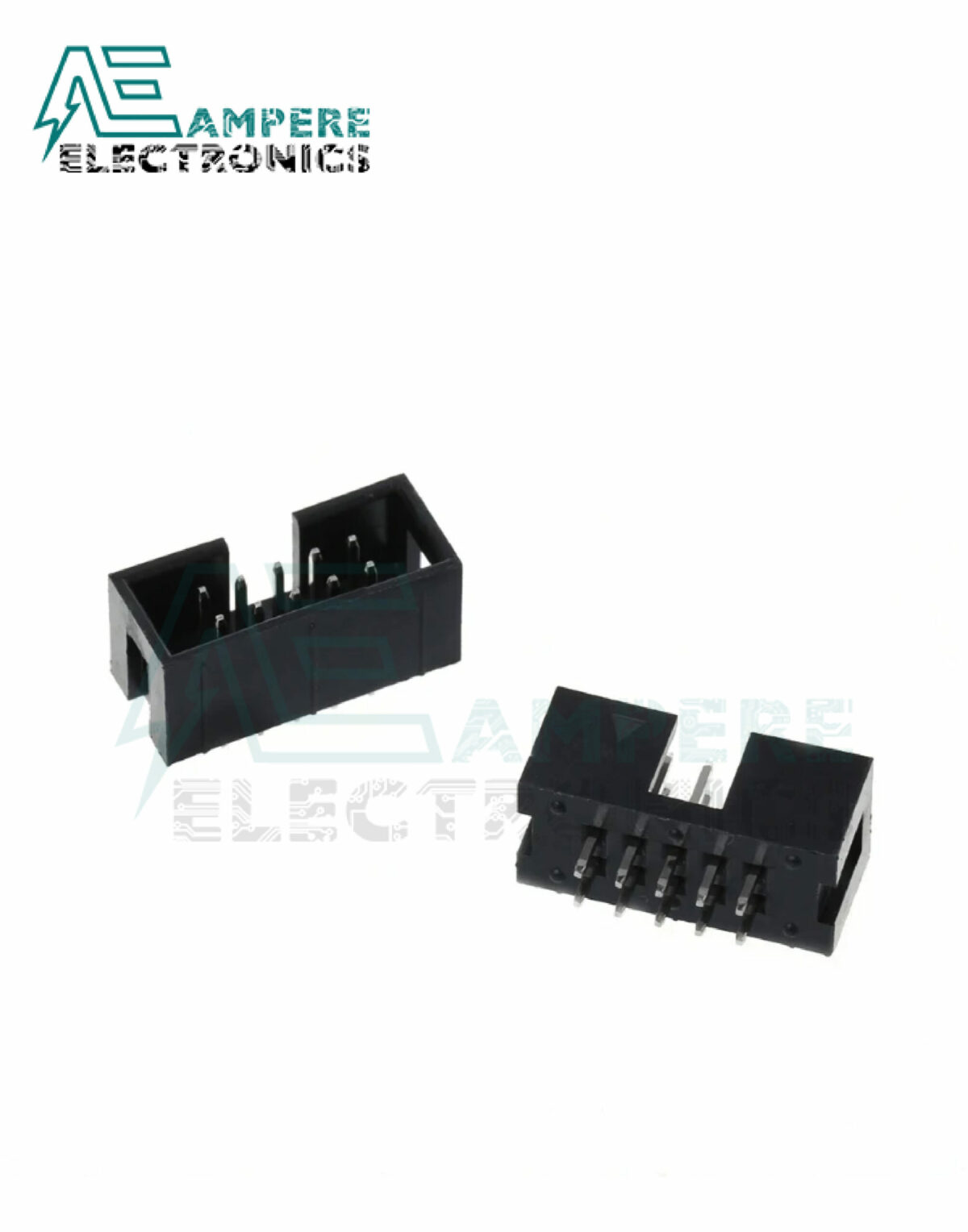

DC3-10P Male IDC Connector Polarized, Straight

DC3-10P Male IDC Connector Polarized, Straight

  • Gender: Male
  • Current Handling Capacity (A) : 3
  • No. of Contact Points: 10
  • Connector Type: IDC
  • Contact Material: Brass
  • Contact Plating: Nickel
  • Operating Temperature Range (C): -40 to 105
  • Flammability Rating: UL94V-0
  • Color: Black
SKU: 16205
shield

Safe shopping

Your data is always protected

Sale_coupon_15

2,00EGP

In stock

In stock

11 People watching this product now!
  • shop Pick up from the Store

Everyday from 9 AM to 7 PM

  • aramex ARAMEX DELIVREY

2-3 Days

Total fees when checkout

  • product-return Return within 14 days

Payment Methods:

Description

DC3-10P Male IDC Connector Polarized, Straight

2.54mm DC3 10 Pin Straight Male IDC Socket, is an IDC socket connector used to make physical connections in a variety of applications.They are common in industrial applications, where the accuracy of connections, the ability to make them reliable and where there may be many wires that need to be connected at once are all vital considerations.

This IDC product technology allows cost-effective connections between circuit boards based on a permanent connection (using transition connector) or removable connection (using IDC flat cable connectors).

Because these devices make such reliable connections, they are also ideally suited for environments where dust and other hazards may pose significant threats to electronic equipment. In situations where such equipment needs to be repaired, these connectors can drastically reduce the amount of time required to make those repairs, often reducing repairs to a simple swapping out of cables.

Feature:

  • Nickel-plated terminals.
  • Good quality plastic.
  • Ideal in a dusty or hazardous environment.
  • Easy to repair.
  • Widely used in industrial applications.
Colour Black
Package DIL
Number of Pins/Conductors 10
Pin/Conductor Spacing 2.54mm
Minimum Insulation Resistance 1000MΩ
Rated Current 3A
Rated Voltage 250V
Insulation Material PBT (Polybutylene Terephthalate) Thermoplastic with Glass Fiber
Conductor Material Gold Plated Brass (over Nickel)
Operating Temperature -40°C to 105°C

DataSheet:

IDC Connector
