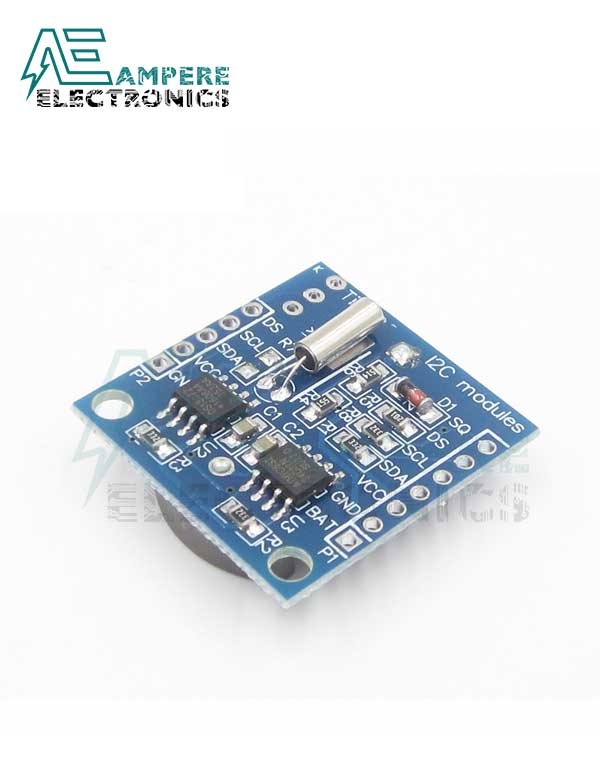

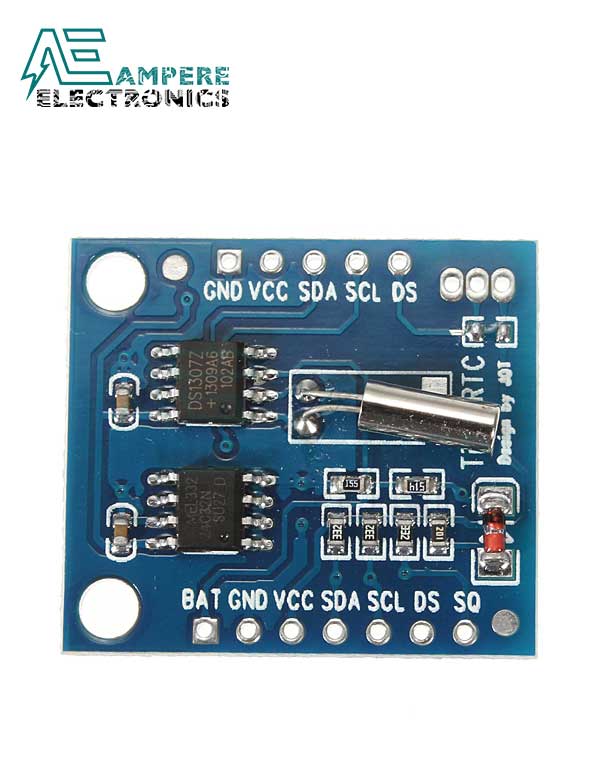

DS1307 Real Time Clock Module (RTC)
DS1307 Real Time Clock Module (RTC)
- I2C Interface RTC IC
- Operating Voltage: 5V
- Less than 500nA current when operating with battery
- 56bytes SVRAM
- Operates in power or battery mode
- Programmable square wave output pin
- Available in PDIP and SO package
Safe shopping
Your data is always protected
Sale_coupon_15
65,00EGP
In stock
In stock
20
People watching this product now!
-
Return within 14 days
Payment Methods:
Description
DS1307 Real Time Clock Module (RTC)
Real-time clocks (RTC), as the name recommends are clock modules. The DS1307 real-time clock (RTC) IC is an 8 pin device using an I2C interface. The DS1307 is a low-power clock/calendar with 56 bytes of battery backup SRAM. The clock/calendar provides seconds, minutes, hours, day, date, month and year qualified data. The end date of each month is automatically adjusted, especially for months with less than 31 days.
Pin Configurations:
| Pin Number | Pin?Name | Description |
| 1,2 | X1 , X2 | Crystal Oscillator should be connected to these pins |
| 3 | V-Bat | Connected to Positive terminal of the battery |
| 4 | Ground | Ground pin of the IC |
| 5,6 | SCL and SDA | Pins for I2C communication with CPU |
| 7 | SQW / Out | Square wave output driver pin to obtain square wave frequencies. |
| 8 | Vcc | Powers the IC typically 5V |
Features:
- I2C Interface RTC IC
- Operating Voltage: 5V
- Less than 500nA current when operating with battery
- 56bytes SVRAM
- Operates in power or battery mode
- Programmable square wave output pin
- Available in PDIP and SO package
Applications:
- Robotics
- Gaming
- Servers
- Computer Peripherals
- GPS
- Utility power meters
Package Includes:
- 1x RTC DS1307 Real-Time Clock Module

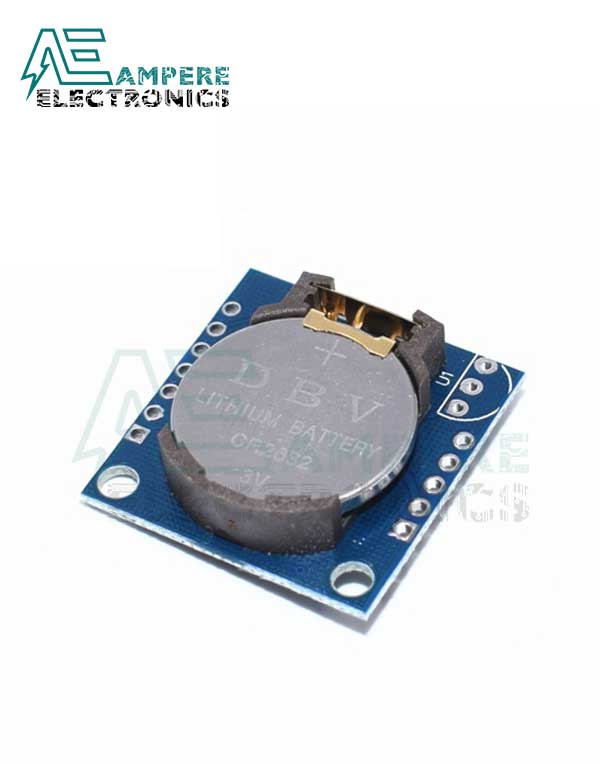

- 1x CR2032 Battery
Datasheet:
- DS1307 Real Time Clock Module
