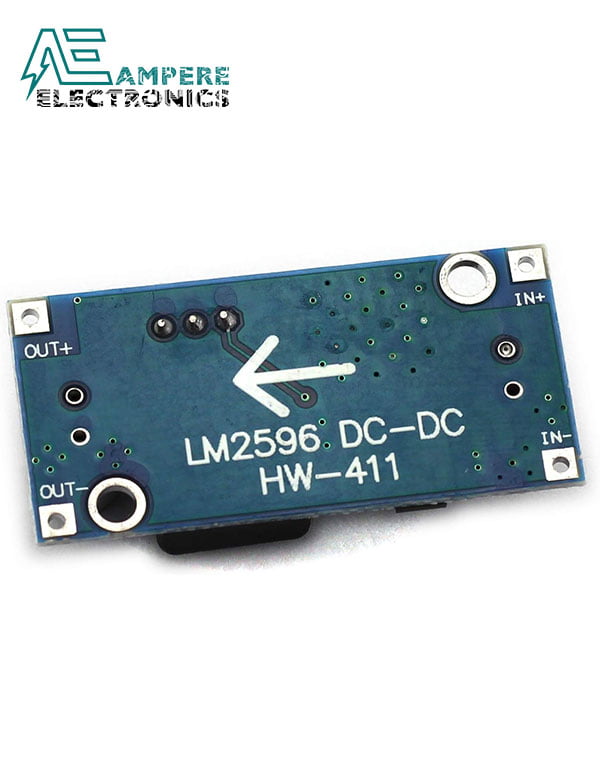

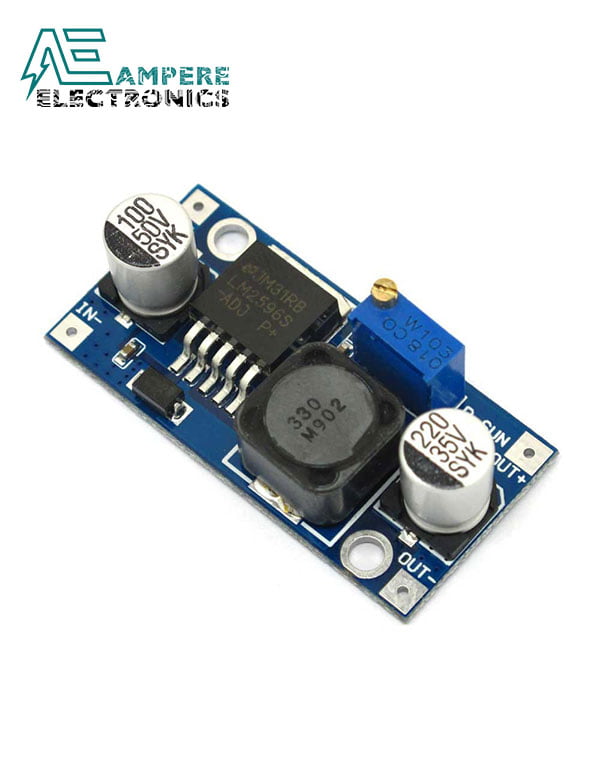

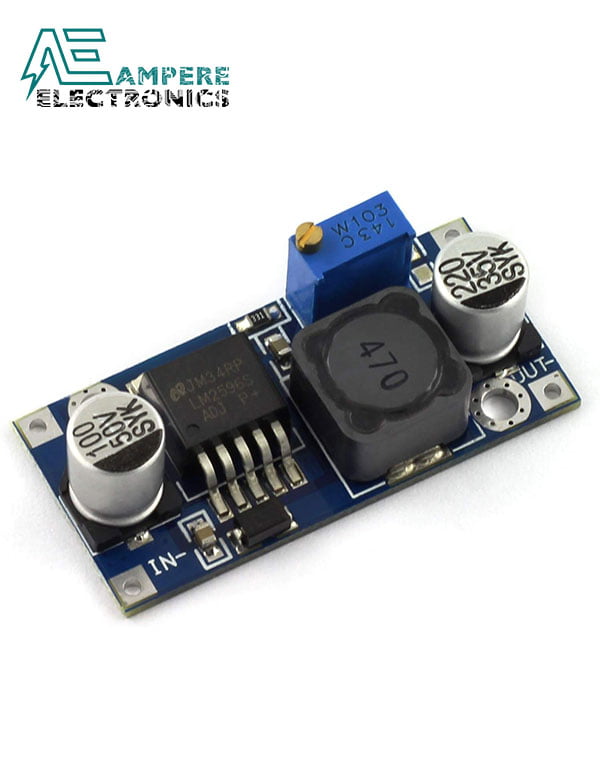

LM2596 DC-DC Buck Converter Step-Down Power Module Output 1.25V-35V

DC-DC Step Down Converter Variable 3A (4~38Vdc to 1.25~36Vdc)

45.00 EGP

Add to Wishlist
Add to Wishlist

Description

Variable Output DC-DC Step Down Converter (based on LM2596S)

The DC-DC module based on LM2596 advocate current to 3.0A, but only to 1.8A.However, being introduced module adds a heatsink, using high-power devices.This module can easily reach 4A, 50W, add heat sink circumstances can reach 75W.

Features:

Module highlights: 5A high power、high efficiency and low ripple with power indicator.
Input voltage range:4~38VDC (Note:input voltage not exceeding 38V)

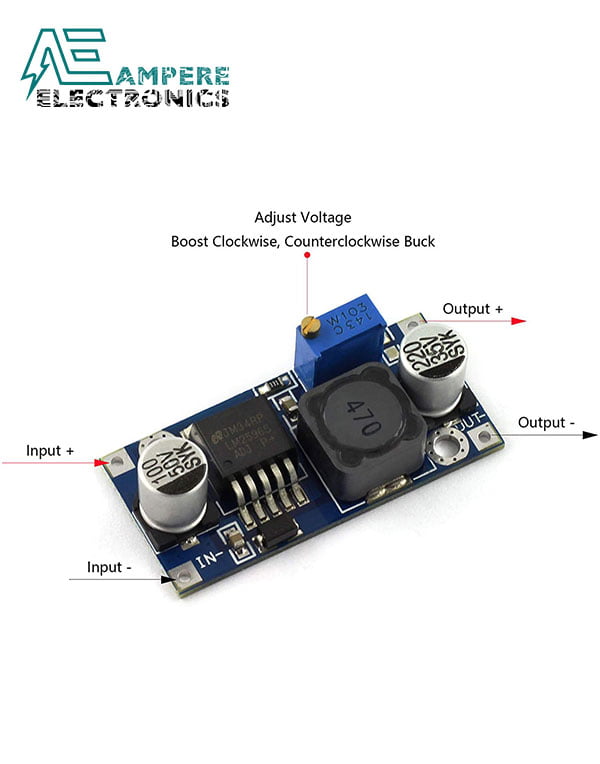

Output voltage range:1.25-36VDC adjustable
Output current: 0-5A, recommended for use in 4.5A.
Output power: 75W
Working temperature: -40~+85 degrees
Operating frequency: 180KHz
Efficiency:96%(max)
Short circuit protection: yes (limit current 8A).
Over temperature protection
Input reverse polarity protection: None (if required, high current diode in series with the input).
L x W x H = 54 * 23 * 18mm
