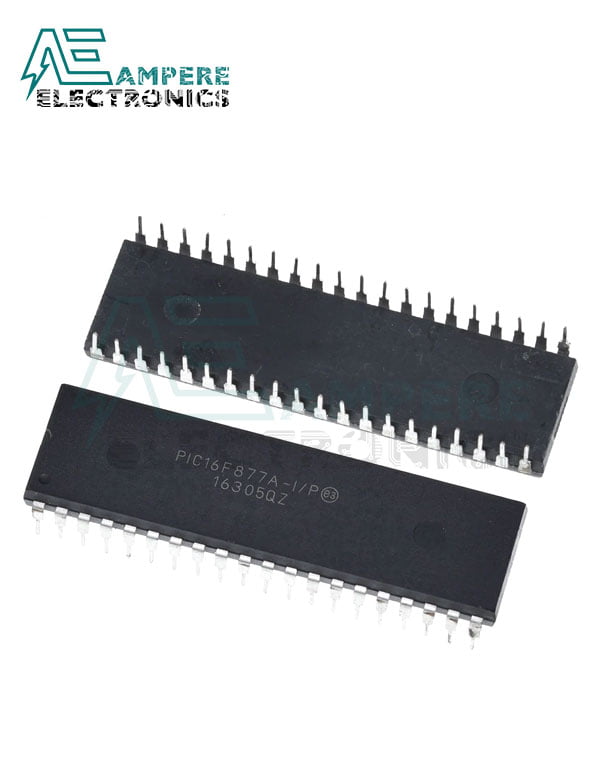

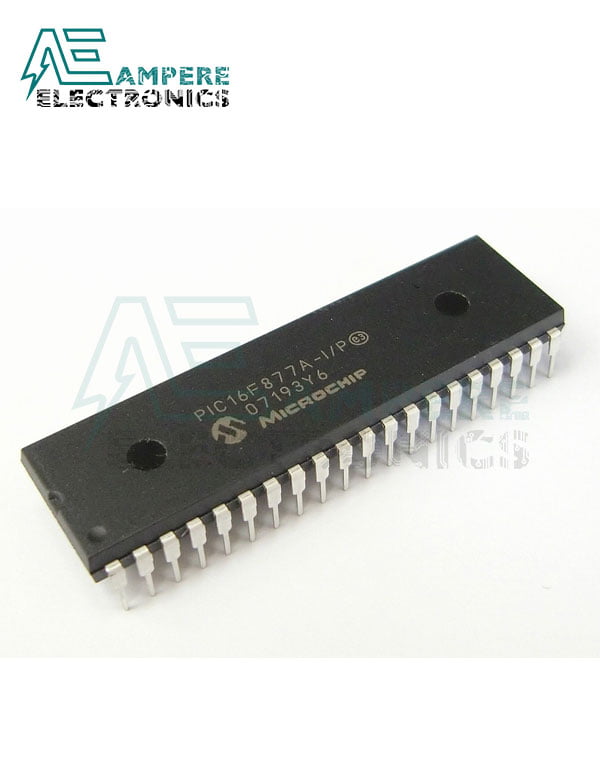

PIC16F877A-I/P Enhanced Flash MCU,8-Bit, 40-Pin DIP
PIC16F877A-I/P Enhanced Flash MCU,8-Bit, 40-Pin DIP
- Enhanced flash microcontroller
- High performance RISC CPU
- DC–200ns instruction cycle
- Up to 8K x 14 words of flash program memory
- Up to 368 x 8 bytes of data memory (RAM)
- Up to 256 x 8 bytes of EEPROM data memory
- 8 bit timer/counter with 8 bit prescaler
SKU:
23010

Safe shopping
Your data is always protected
Sale_coupon_15
150,00EGP
Out of stock
Out of stock
20
People watching this product now!
-
Pick up from the Store
Everyday from 9 AM to 7 PM
-
ARAMEX DELIVREY
2-3 Days
Total fees when checkout
-
Return within 14 days
Payment Methods:
Description
PIC16F877A-I/P Enhanced Flash MCU,8-Bit, 40-Pin DIP
This is a PIC16F877A DIP-40 PIC16F877A-I/P PIC microcontroller ic microchip. It has 100,000 erase/write cycle enhanced flash program memory typically. Self-reprogrammable under software control. With single-supply 5V in-circuit serial programming. Watchdog timer (WDT) with its own on-chip RC oscillator. Programmable code protection. It has power-saving sleeping mode.
Product Overview
- Enhanced flash microcontroller
- High performance RISC CPU
- DC–200ns instruction cycle
- Up to 8K x 14 words of flash program memory
- Up to 368 x 8 bytes of data memory (RAM)
- Up to 256 x 8 bytes of EEPROM data memory
- 8 bit timer/counter with 8 bit prescaler
- 16 bit timer/counter with prescaler, can be incremented during Sleep via external crystal/clock
- 8 bit timer/counter with 8 bit period register, prescaler and postscaler
- Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI) with 9 bit address detection
- Brown-out detection circuitry for Brown-out reset (BOR)
- 10 bit, 8 channel analog to digital converter
- Analog comparator module
- 100,000 erase/write cycle enhanced flash program memory typical
- 1,000,000 erase/write cycle data EEPROM memory typical
- Data EEPROM retention of 40 years
- Self reprogrammable under software control
- In circuit serial programming via two pins
- Watchdog timer (WDT) with its own on chip RC oscillator for reliable operation
- Programmable code protection
- Power saving sleep mode
- Selectable oscillator options
- In circuit debug (ICD) via two pins
- Low power, high speed flash/EEPROM technology
Package Includes:
- 1x PIC16F877A
