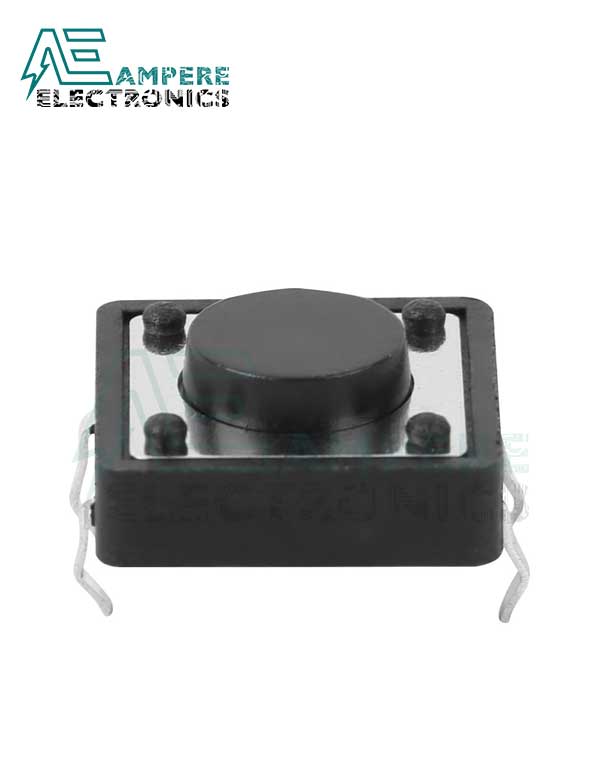

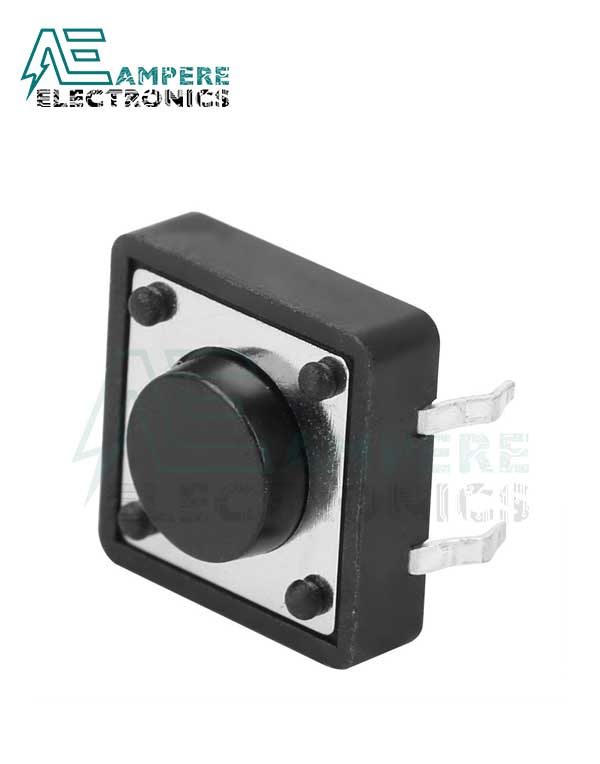

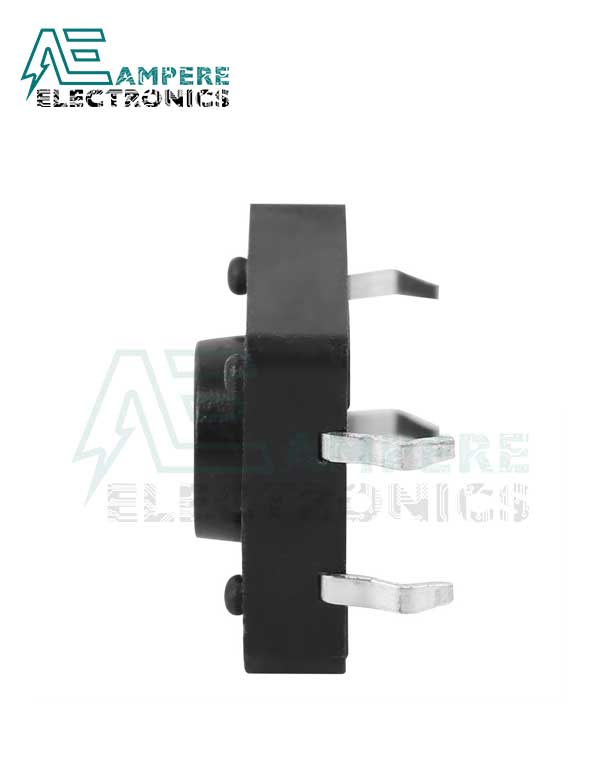

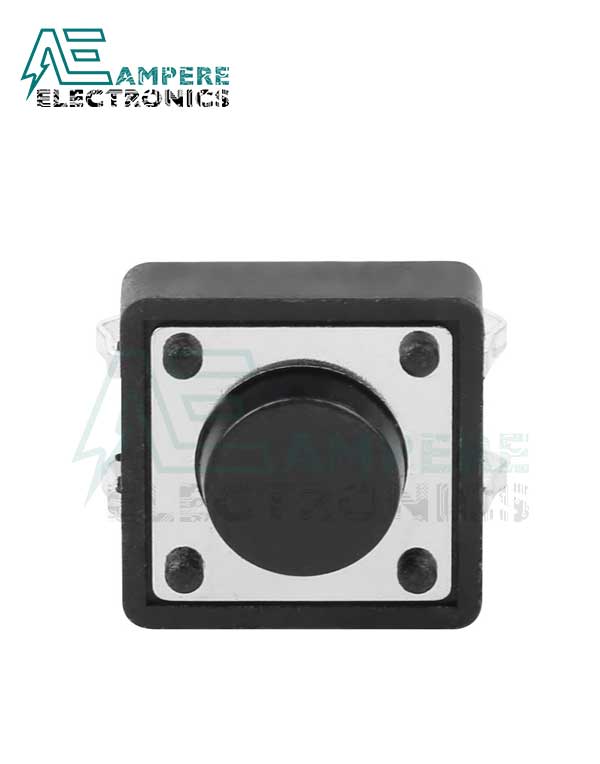

Press 4-Pin (12×12)

Press 4-Pin (12×12)

Stainless Steel cover
Stainless Steel contacts with silver cladding
Wave soldering 260?C 10 seconds. Max.
Operating temperature range -40?C to +85?C

SKU: 24241
shield

Safe shopping

Your data is always protected

Sale_coupon_15

3,00EGP

Out of stock

Out of stock

14 People watching this product now!
  • shop Pick up from the Store

Everyday from 9 AM to 7 PM

  • aramex ARAMEX DELIVREY

2-3 Days

Total fees when checkout

  • product-return Return within 14 days

Payment Methods:

Description

Press 4-Pin (12×12)

Stainless Steel cover
Stainless Steel contacts with silver cladding
Wave soldering 260?C 10 seconds. Max.
Operating temperature range -40?C to +85?C

Specifications:

Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Terminal Type Solder, Through Hole
Switch Operation Momentary
Actuator Length 0.8mm
Actuator Colour Black
Actuator Type Button
Length 12.5mm
Width 12mm
Dimensions 12 x 12.5mm
Mounting Type Through Hole
Contact Current Rating 50 mA @ 12 V dc
Height 4.3mm
Voltage Rating 12V dc
Operating Force 160 g
Operating Temperature Range -40 ? +85?C
Minimum Operating Temperature -40?C
Contact Material Silver Plated Stainless Steel
Maximum Operating Temperature +85?C
Mechanical Life 500000Cycles
