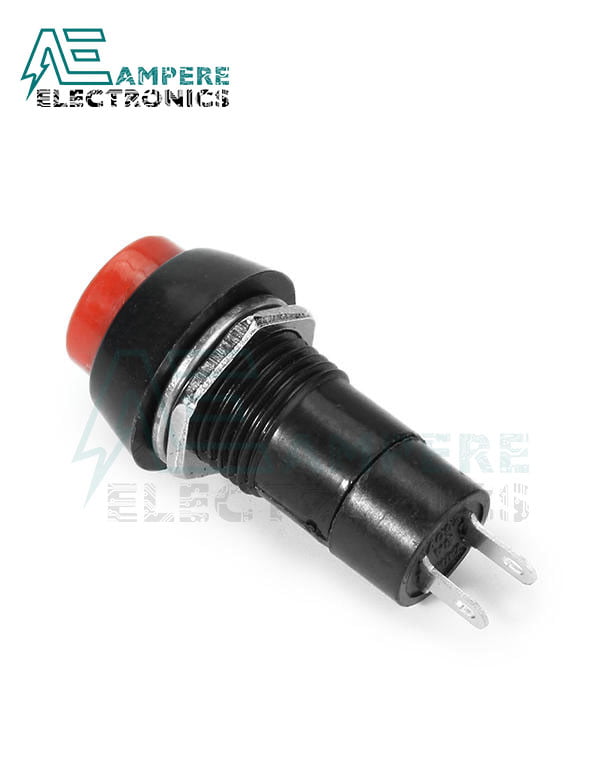

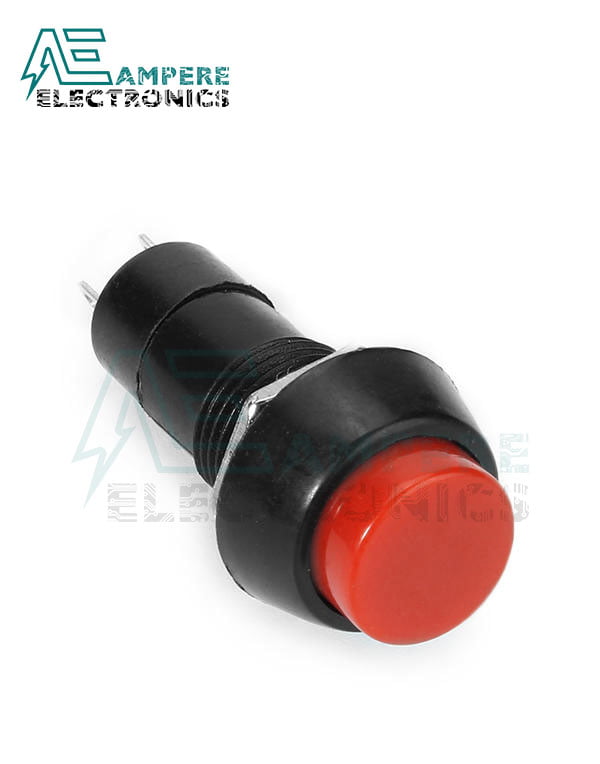

Push Button Latching Red N.O – 12mm
Push Button Latching Red N.O – 12mm
- SPST contact
- Off-On operation
- 3A contact current
- 250V AC contact voltage
- Solder lug terminal
- Contact rating 3A 125V AC, 1.5A 250V AC
Safe shopping
Your data is always protected
Sale_coupon_15
8,00EGP
In stock
In stock
16
People watching this product now!
-
Return within 14 days
Payment Methods:
Description
Push Button Latching Red N.O – 12mm
- SPST contact
- Off-On operation
- 3A contact current
- 250V AC contact voltage
- Solder lug terminal
- Contact rating 3A 125V AC, 1.5A 250V AC
Specifications:
| Attribute | Value |
| Switch Operation | Latching |
| Mounting Type | Panel Mount |
| Illuminated | No |
| Contact Configuration | Single Pole Single Throw (SPST) |
| Panel Cut Out Size | 12 (Dia.)mm |
| Panel Cut Out Diameter | 12mm |
| Actuator Color | Red |
| Voltage Rating | 125/250V ac |
| Contact Current Rating | 3 A @ 250 V ac |
| Actuator Shape | Round |
| Case Color | Black |
| Actuator Type | Button |
| Terminal Type | Solder |

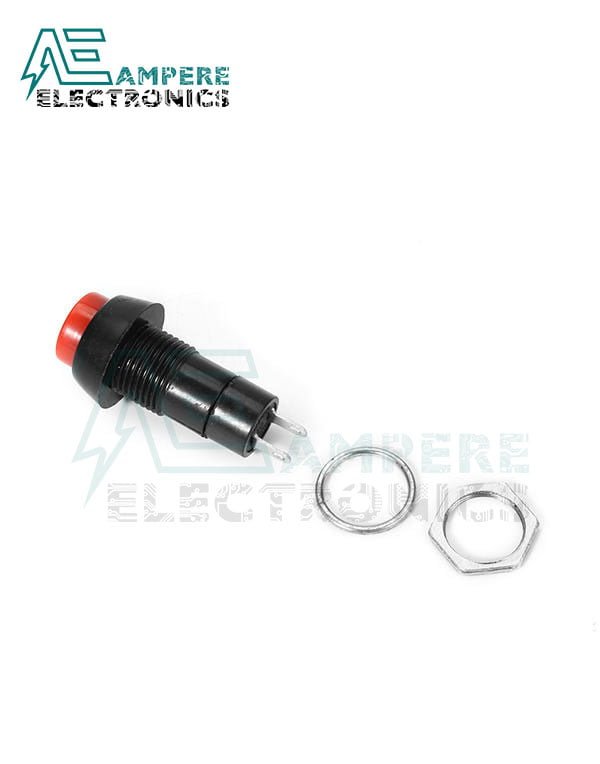

Package Includes:
- 1x Push Button
