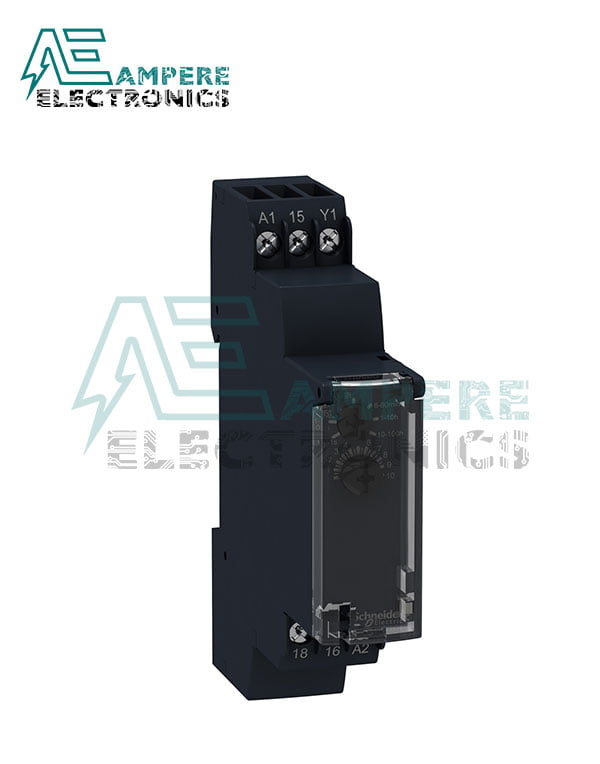

RE17RAMU – On-delay timing relay – 1 s..100 h – 24..240 V AC – 1 OC, Schneider Electric

RE17RAMU – on-delay timing relay – 1 s..100 h – 24..240 V AC – 1 OC, Schneider Electric
Brand: Schneider Electric
Product Code: RE17RAMU

330.00 EGP

Out of stock

SKU: 22579 Category:
Add to Wishlist
Add to Wishlist

Description

Characteristics
range of product Zelio Time
product or component type Modular timing relay
discrete output type Relay
width 17.5 mm
device short name RE17R
time delay type At
A
time delay range 1…10 min
10…100 h
0.1…1 s
6…60 s
6…60 min
1…10 s
1…10 h
nominal output current 8 A
Complementary
contacts type and composition 1 C/O
contacts material Cadmium free
height 90 mm
depth 72 mm
control type Selector switch front panel
[Us] rated supply voltage 24…240 V AC 50/60 Hz
24 V DC
voltage range 0.85…1.1 Us
supply frequency 50…60 Hz +/- 5 %
release of input voltage 10 V
connections – terminals Screw terminals, 1 x 0.5…1 x 3.3 mm² (AWG 20…AWG 12) solid without cable end
Screw terminals, 2 x 0.5…2 x 2.5 mm² (AWG 20…AWG 14) solid without cable end
Screw terminals, 1 x 0.2…1 x 2.5 mm² (AWG 24…AWG 14) flexible with cable end
Screw terminals, 2 x 0.2…2 x 1.5 mm² (AWG 24…AWG 16) flexible with cable end
tightening torque 0.6…1 N.m conforming to IEC 60947-1
housing material Self-extinguishing
repeat accuracy +/- 0.5 % conforming to IEC 61812-1
temperature drift +/- 0.05 %/°C
voltage drift +/- 0.2 %/V
setting accuracy of time delay +/- 10 % of full scale at 25 °C conforming to IEC 61812-1
control signal pulse width 100 ms with load in parallel typical
30 ms typical
insulation resistance 100 MOhm at 500 V DC conforming to IEC 60664-1
reset time 120 ms on de-energisation typical
on-load factor 100 %
power consumption in VA 0…32 VA at 240 V AC
maximum power consumption in W 0.6 W at 24 V DC
minimum switching current 10 mA at 5 V DC
maximum switching current 8 A AC/DC
maximum switching voltage 250 V AC
breaking capacity 2000 VA
operating frequency 10 Hz
electrical durability 100000 cycles (8 A at 250 V AC maximum) for resistive load
mechanical durability 10000000 cycles
dielectric strength 2.5 kV 1 mA/1 minute 50 Hz conforming to IEC 61812-1
[Uimp] rated impulse withstand voltage 5 kV during 1.2/50 µs
power on delay 100 ms
marking CE
creepage distance 4 kV/3 conforming to IEC 60664-1
safety reliability data B10d = 270000
MTTFd = 296.8 years
mounting position Any position in relation to normal vertical mounting plane
mounting support 35 mm DIN rail conforming to EN/IEC 60715
local signalling LED indicator for on steady: relay energised, no timing in progress
LED indicator for flashing: timing in progress 80 % ON and 20 % OFF
LED indicator for pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L) 5 % ON and 95 % OFF
net weight 0.07 kg
time delay type A, At
functionality On-delay timing
compatibility code RE17
