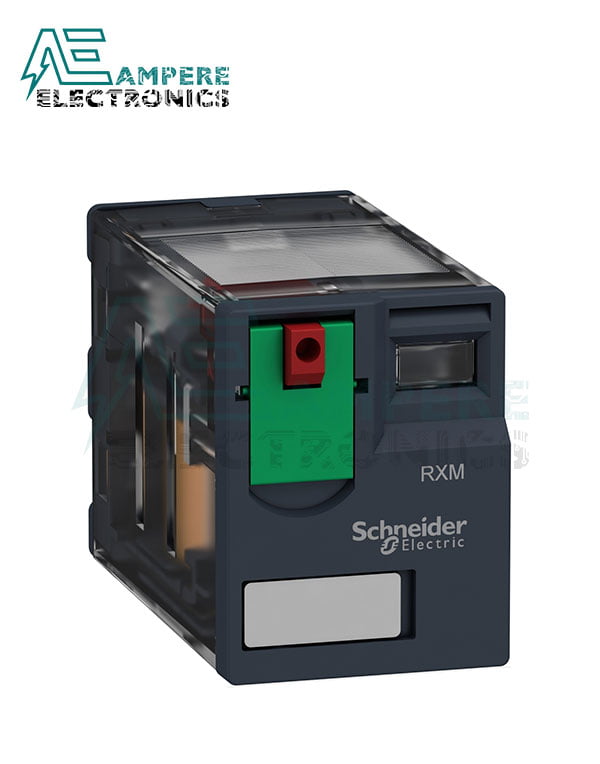

RXM4AB1BD – Miniature plug-in relay, 6 A, 4 CO, 24 V DC, Schneider Electric
RXM4AB1BD – Miniature Plug-in relay – Zelio RXM 4 C/O 24 V DC 6 A, Schneider Electric
Brand: Schneider Electric
Product Code: RXM4AB1BD +BASE
85.00 EGP
Out of stock
Add to Wishlist
Add to Wishlist
Description
| Characteristics | |
| range of product | Zelio Relay |
| series name | Miniature |
| product or component type | Plug-in relay |
| device short name | RXM |
| contacts type and composition | 4 C/O |
| [Uc] control circuit voltage | 24 V DC |
| [Ithe] conventional enclosed thermal current | 6 A at -40…55 °C |
| status LED | Without |
| control type | Lockable test button |
| utilisation coefficient | 20% |
| Complementary | |
| shape of pin | Flat |
| [Ui] rated insulation voltage | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
| [Uimp] rated impulse withstand voltage | 2.5 kV during 1.2/50 µs |
| contacts material | AgNi |
| [Ie] rated operational current | 3 A at 28 V (DC) NC conforming to IEC 3 A at 250 V (AC) NC conforming to IEC 6 A at 28 V (DC) NO conforming to IEC 6 A at 250 V (AC) NO conforming to IEC 6 A at 277 V (AC) conforming to UL 8 A at 30 V (DC) conforming to UL |
| maximum switching voltage | 250 V conforming to IEC |
| resistive rated load | 6 A at 250 V AC 6 A at 28 V DC |
| maximum switching capacity | 1500 VA/168 W |
| minimum switching capacity | 170 mW at 10 mA, 17 V |
| operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| mechanical durability | 10000000 cycles |
| electrical durability | 100000 cycles for resistive load |
| average coil consumption in W | 0.9 W |
| drop-out voltage threshold | >= 0.1 Uc |
| operate time | 20 ms |
| release time | 20 ms |
| average coil resistance | 650 Ohm at 20 °C +/- 10 % |
| rated operational voltage limits | 19.2…26.4 V DC |
| safety reliability data | B10d = 100000 |
| protection category | RT I |
| test levels | Level A group mounting |
| operating position | Any position |
| CAD overall height | 79 mm |
| CAD overall depth | 78.45 mm |
| net weight | 0.037 kg |
