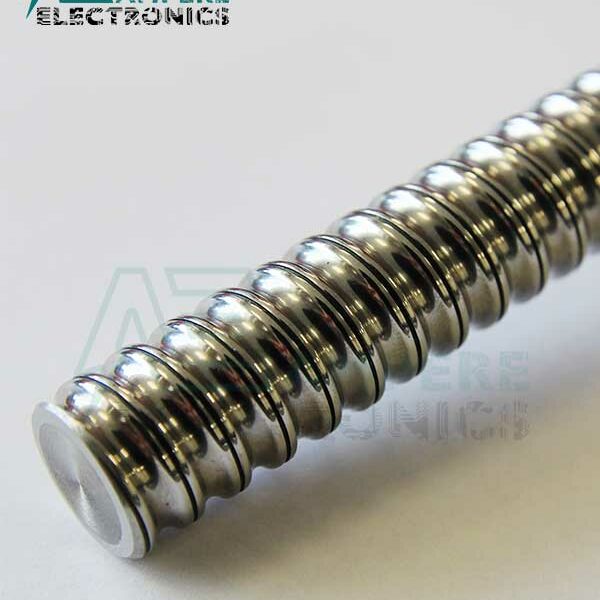

SFU2010 Ball Screw
SFU2010 Ball Screw
Safe shopping
Your data is always protected
Sale_coupon_15
1.165,00EGP – 3.495,00EGP
12
People watching this product now!
-
Return within 14 days
Payment Methods:
Description
SFU2010 Ball Screw
| Circulation type | Model |
Characteristic |
|
| Single
Nut |
Double Nuts | ||
| Internal Circulation type | SFK SFU
SFIÂ SCI |
DFU
DFI |
•Dedicated diameter of screw takes only little space. •Applicable to those with smaller lead / the outside diameter of the screw |
| External Circulation type | SFV XFV | DFV |
•Economy •Applicable to larger lead and diameter. •Applicable for high loading purpose. |
| End-caps Circulation type | SFS SFY | DFS |
•Suitable for high speed positioning |
Size Table of SFU Screws
|
Model No. |
d |
l |
Da |
Dimension |
Load Rating |
||||||||||
|
D |
A |
B |
L |
W |
H |
X |
Q |
n |
Ca(kgf) |
Coa(kgf) |
|||||
|
☆ |
SFU 1204-3 |
12 |
4 |
2.5 |
24 |
40 |
10 |
40 |
32 |
30 |
4.5 |
M6x1 |
1×3 |
415 |
709 |
|
|
SFU 1604-3 |
16 |
4 |
2.381 |
28 |
48 |
10 |
36 |
38 |
40 |
5.5 |
M6x1 |
1×3 |
488 |
940 |
|
☆ |
SFU 1605-3 |
5 |
3.175 |
28 |
48 |
10 |
42 |
38 |
40 |
5.5 |
M6x1 |
1×3 |
666 |
1143 |
|
|
☆ |
SFU 1605-4 |
5 |
3.175 |
28 |
48 |
10 |
50 |
38 |
40 |
5.5 |
M6x1 |
1×4 |
1127 |
2288 |
|
|
☆ |
SFU 1610-3 |
10 |
3.175 |
28 |
48 |
10 |
57 |
38 |
40 |
5.5 |
M6x1 |
1×3 |
909 |
1848 |
|
|
|
SFU 2004-3 |
20 |
4 |
2.381 |
36 |
58 |
10 |
42 |
47 |
44 |
6.6 |
M6x1 |
1×3 |
541 |
1187 |
|
☆ |
SFU 2005-3 |
5 |
3.175 |
36 |
58 |
10 |
42 |
47 |
44 |
6.6 |
M6x1 |
1×3 |
749 |
1495 |
|
|
☆ |
SFU 2005-4 |
5 |
3.175 |
36 |
58 |
10 |
51 |
47 |
44 |
6.6 |
M6x1 |
1×4 |
1268 |
2991 |
|
|
|
SFU 2504-3 |
25 |
4 |
2.381 |
40 |
62 |
10 |
42 |
51 |
48 |
6.6 |
M6x1 |
1×3 |
605 |
1534 |
|
☆ |
SFU 2505-3 |
5 |
3.175 |
40 |
62 |
10 |
42 |
51 |
48 |
6.6 |
M6x1 |
1×3 |
839 |
1935 |
|
|
☆ |
SFU 2505-4 |
5 |
3.175 |
40 |
62 |
10 |
51 |
51 |
48 |
6.6 |
M6x1 |
1×4 |
1450 |
3872 |
|
|
☆ |
SFU 2510-3 |
1 |
4.732 |
40 |
62 |
10 |
70 |
51 |
48 |
6.6 |
M6x1 |
1×3 |
1427 |
2771 |
|
|
☆ |
SFU 2510-4 |
10 |
4.762 |
40 |
62 |
12 |
85 |
51 |
48 |
6.6 |
M6x1 |
1×4 |
2415 |
5543 |
|
|
☆ |
SFU 3205-4 |
32 |
5 |
3.175 |
50 |
80 |
12 |
52 |
65 |
62 |
9 |
M6x1 |
1×4 |
1604 |
5103 |
|
SFU 3210-3 |
10 |
6.35 |
50 |
80 |
12 |
74 |
65 |
62 |
9 |
M6x1 |
1×3 |
2319 |
4575 |
||
|
SFU 3210-4 |
10 |
6.35 |
50 |
80 |
12 |
90 |
65 |
62 |
9 |
M6x1 |
1×4 |
3924 |
9152 |
||
|
SFU 4005-4 |
40 |
5 |
3.175 |
63 |
93 |
14 |
55 |
78 |
70 |
9 |
M8x1 |
1×4 |
1786 |
6512 |
|
|
SFU 4010-3 |
10 |
6.35 |
63 |
93 |
14 |
71 |
78 |
70 |
9 |
M8x1 |
1×3 |
2610 |
5834 |
||
|
SFU 4010-4 |
10 |
6.35 |
63 |
93 |
14 |
93 |
78 |
70 |
9 |
M8x1 |
1×4 |
4417 |
11669 |
||
|
SFU 5010-4 |
50 |
10 |
6.35 |
75 |
110 |
16 |
93 |
93 |
85 |
11 |
M8x1 |
1×4 |
4947 |
15488 |
|
|
SFU 6310-4 |
60 |
10 |
6.35 |
90 |
125 |
18 |
98 |
108 |
95 |
11 |
M8x1 |
1×4 |
5586 |
20417 |
|
|
SFU 6320-4 |
20 |
9.525 |
95 |
135 |
20 |
149 |
115 |
100 |
13.5 |
M8x1 |
1×4 |
9397 |
28512 |
||
|
SFU 8010-4 |
80 |
10 |
6.35 |
105 |
145 |
20 |
98 |
125 |
110 |
13.5 |
M8x1 |
1×4 |
6219 |
26049 |
|
|
SFU 8020-4 |
20 |
9.525 |
125 |
165 |
25 |
154 |
145 |
130 |
13.5 |
M8x1 |
1×4 |
10665 |
38018 |
||
|
Note:with sign ☆ can poduce left helix |
|||||||||||||||
Package Includes:
- 1x Ball Screw
