L298N Dual H Bridge Driver Module
L298N Dual H Bridge Driver Module
- Driver Model: L298N 2A
- Driver Chip: Double H Bridge L298N
- Motor Supply Voltage (Maximum): 46V
- Motor Supply Current (Maximum): 2A
- Logic Voltage: 5V
- Driver Voltage: 5-35V
- Driver Current:2A
- Logical Current:0-36mA
- Maximum Power (W): 25W
- Current Sense for each motor
- Heatsink for better performance
- Power-On LED indicator
Safe shopping
Your data is always protected
Sale_coupon_15
130,00EGP
In stock
In stock
-
Pick up from the Store
Everyday from 9 AM to 7 PM
-
ARAMEX DELIVREY
2-3 Days
Total fees when checkout
-
Return within 14 days
Payment Methods:
Description
L298N Dual H Bridge Driver Module
This L298N Dual H Bridge Driver Module is a high power motor driver module for driving DC and Stepper Motors. This module consists of an L298 motor driver IC and a 78M05 5V regulator. L298N Module can control up to 4 DC motors, or 2 DC motors with directional and speed control.
Pinout:
|
Pin Name |
Description |
|
IN1 & IN2 |
Motor A input pins. Used to control the spinning direction of Motor A |
|
IN3 & IN4 |
Motor B input pins. Used to control the spinning direction of Motor B |
|
ENA |
Enables PWM signal for Motor A |
|
ENB |
Enables PWM signal for Motor B |
|
OUT1 & OUT2 |
Output pins of Motor A |
|
OUT3 & OUT4 |
Output pins of Motor B |
|
12V |
12V input from DC power Source |
|
5V |
Supplies power for the switching logic circuitry inside L298N IC |
|
GND |
Ground pin |
Specifications:
- Driver Model: L298N 2A
- Driver Chip: Double H Bridge L298N
- Motor Supply Voltage (Maximum): 46V
- Motor Supply Current (Maximum): 2A
- Logic Voltage: 5V
- Driver Voltage: 5-35V
- Driver Current:2A
- Logical Current:0-36mA
- Maximum Power (W): 25W
- Current Sense for each motor
- Heatsink for better performance
- Power-On LED indicator
Applications:
- Drive DC motors.
- Drive stepping motors
- In Robotics
Package Includes:
- 1x L298 Module
Documents:
Related Products:
Customer Reviews
Related Product s
TMC2208 V1.2 Stepper Motor Driver Module
195,00EGP
L298N Motor Driver Module
75,00EGP

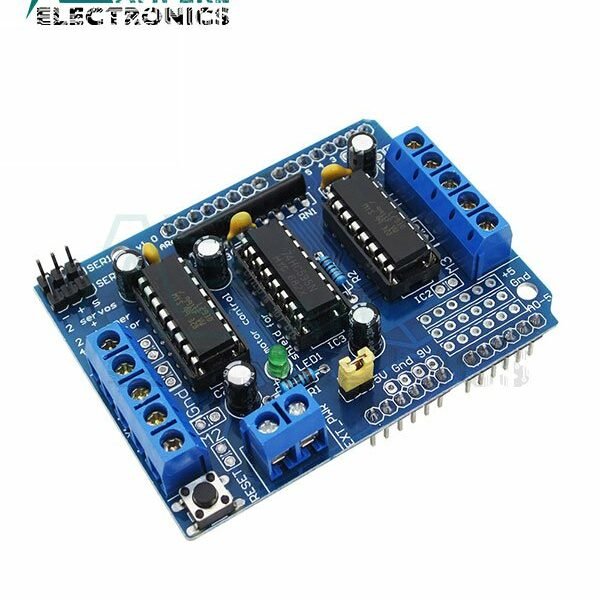

L293D Motor Driver Shield
