MG996R Servo Motor Metal Gear (11kg/cm)
MG996R Servo Motor Metal Gear (11kg/cm)
- Operating Voltage is +5V typically
- Current: 2.5A (6V)
- Stall Torque: 9.4 kg/cm (at 4.8V)
- Maximum Stall Torque: 11 kg/cm (6V)
- Operating speed is 0.17 s/60?
- Gear Type: Metal
- Rotation : 0?-180?
- Weight of motor : 55gm
- Package includes gear horns and screws
Safe shopping
Your data is always protected
Sale_coupon_15
200,00EGP
In stock
In stock
15
People watching this product now!
-
Pick up from the Store
Everyday from 9 AM to 7 PM
-
ARAMEX DELIVREY
2-3 Days
Total fees when checkout
-
Return within 14 days
Payment Methods:
Description
MG996R Servo Motor Metal Gear (11kg/cm)
The?MG996R?is a?metal gear servo motor?with a maximum stall torque of 11 kg/cm. Like other RC servos the motor rotates from 0 to 180 degree based on the duty cycle of the PWM wave supplied to its signal pin.
Specifications:
- Operating Voltage is +5V typically
- Current: 2.5A (6V)
- Stall Torque: 9.4 kg/cm (at 4.8V)
- Maximum Stall Torque: 11 kg/cm (6V)
- Operating speed is 0.17 s/60?
- Gear Type: Metal
- Rotation : 0?-180?
- Weight of motor : 55gm
- Package includes gear horns and screws
Wire Configuration:
| Wire Number | Wire Color | Description |
| 1 | Brown | Ground wire connected to the ground of system |
| 2 | Red | Powers the motor typically +5V is used |
| 3 | Orange | PWM signal is given in through this wire to drive the motor |
Applications
- Used as actuators in many robots like Biped Robot, Hexapod, robotic arm etc..
- Commonly used for steering system in RC toys
- Robots where position control is required without feedback
- Less weight hence used in multi DOF robots like humanoid robots
Package Includes:
- 1x MG996R Servo Motor
Datasheet:
Related Products:
Customer Reviews
Related Product s

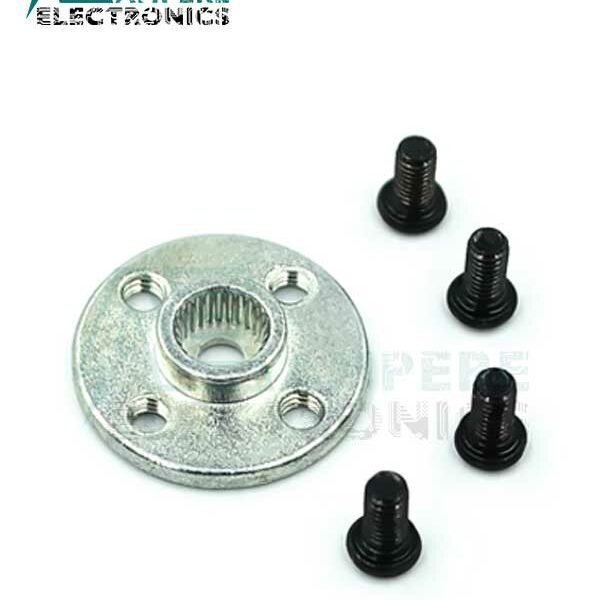

25T Aluminum Servo Motor Disc Horn
