Micro SD Card Adapter Module
Micro SD Card Adapter Module
- Operating Voltage: 4.5V – 5.5V DC
- Current Requirement: 0.2-200 mA
- 3.3 V on-board Voltage Regulator
- Supports FAT file system
- Supports micro SD up to 2GB
- Supports Micro SDHC up to 32GB
Safe shopping
Your data is always protected
Sale_coupon_15
45,00EGP
In stock
In stock
-
Pick up from the Store
Everyday from 9 AM to 7 PM
-
ARAMEX DELIVREY
2-3 Days
Total fees when checkout
-
Return within 14 days
Payment Methods:
Description
Micro SD Card Adapter Module
SD cards or Micro SD cards are widely used in various applications, such as data logging, data visualization, and many more. Micro SD Card Adapter modules make it easier for us to access these SD cards with ease. The Micro SD Card Adapter module is an easy-to-use module with an SPI interface and an on-board 3.3V voltage regulator to provide proper supply to the SD card.
Specifications:
- Operating Voltage: 4.5V – 5.5V DC
- Current Requirement: 0.2-200 mA
- 3.3 V on-board Voltage Regulator
- Supports FAT file system
- Supports micro SD up to 2GB
- Supports Micro SDHC up to 32GB
Pin Configuration:
The module contains 6 pins for power and communicating with the controller. The table below describes the pin type and role of each pin on the module.
| Pin Type | Pin Description |
| GND | Ground |
| VCC | Voltage Input |
| MISO | Master In Slave Out(SPI) |
| MOSI | Master Out Slave In(SPI) |
| SCK | Serial Clock(SPI) |
| CS | Chip Select(SPI) |
Package Includes:
- 1x Micro SD Card Module
Datasheet:
Related Products:
Pinout:
Customer Reviews
Related Product s

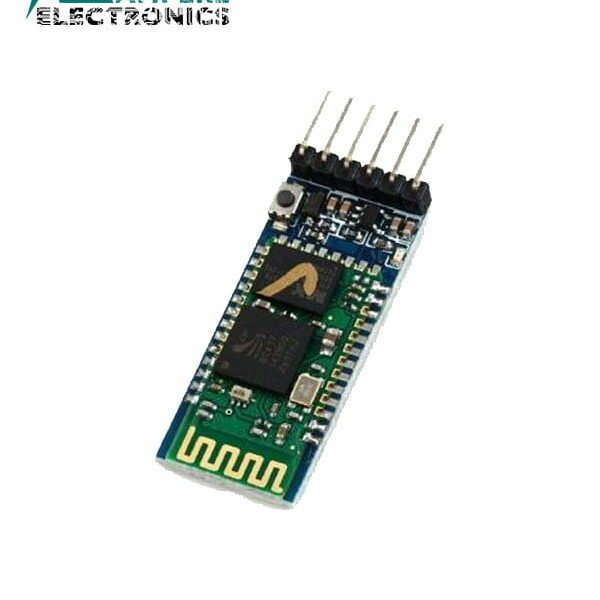

HC-05 Bluetooth Module, Serial TTL
