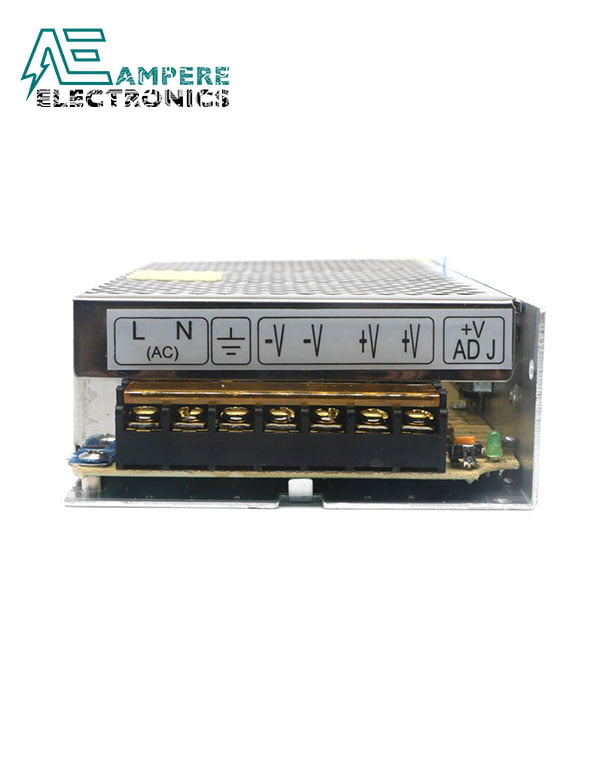

Power Supply SMPS 480W 24V / 20A

Power Supply SMPS 480W 24V / 20A

This is a high-quality switch mode power supply (SMPS) that converts AC to DC 24V with up to 480W output power. It’s highly efficient and widely used as a power adapter, power supply for led light strips, LED display, billboard, industrial equipment, etc.

Specifications:

• AC input voltage range(V): AC 110V/220V±15% (switch replacement)
• Input current(A): 6.5A /115V, 4A /230V
• Frequency (Hz): 50/60Hz
• Efficiency: 87% Typ (230VAC Full Load)
• Inrush current(A): 25A/115V 50A/230V cold start
• Leakage current(mA): <3.5mA/240VAC
• Output Voltage(V): +24VDC
• Output Current(A): 20A
• Current Range (A): 0-20A
• Rated Power(W) : 480W
• Start time, hold-up time(ms): Ton?200ms,Td?30ms @230Vac Full Load
• Rise time(ms): Typ:100ms @230Vac Full Load
• Ripple/Noise(mVp-p): 150mVp-p
• Over voltage Protection: >115%-135% Rated output voltage
• Over load Protection: >105%-150% Aut

Package Includes:

• 1x SMPS Power Supply
