SKU: 22811

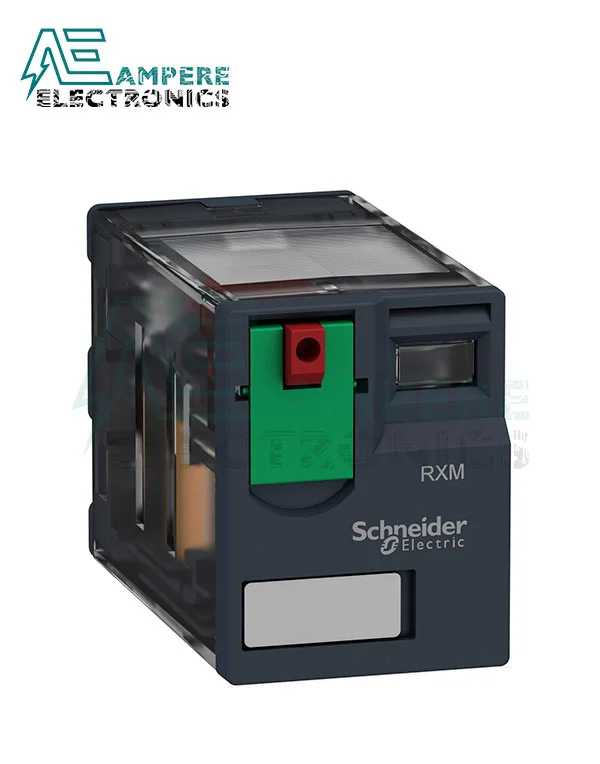

RXM3AB1B7 – Miniature plug-in relay, 10 A, 3 CO, 24 V AC, Schneider Electric

RXM3AB1B7 – Miniature Plug-in relay – Zelio RXM 3 C/O 24 V AC 10 A, Schneider Electric
Brand: Schneider Electric
Product Code: RXM3AB1B7 + BASE

85.00 EGP

In stock

Add to Wishlist
Add to Wishlist
SKU: 22811 Category:


range of product Zelio Relay
series name Miniature
product or component type Plug-in relay
device short name RXM
contacts type and composition 3 C/O
[Uc] control circuit voltage 24 V AC 50/60 Hz
[Ithe] conventional enclosed thermal current 10 A at -40…55 °C
status LED Without
control type Lockable test button
utilisation coefficient 20%
shape of pin Flat
[Ui] rated insulation voltage 250 V conforming to IEC
300 V conforming to CSA
300 V conforming to UL
[Uimp] rated impulse withstand voltage 4 kV during 1.2/50 µs
contacts material AgNi
[Ie] rated operational current 10 A at 28 V (DC) NO conforming to IEC
10 A at 250 V (AC) NO conforming to IEC
5 A at 28 V (DC) NC conforming to IEC
5 A at 250 V (AC) NC conforming to IEC
10 A at 30 V (DC) conforming to UL
10 A at 277 V (AC) conforming to UL
maximum switching voltage 250 V conforming to IEC
resistive rated load 10 A at 250 V AC
10 A at 28 V DC
maximum switching capacity 2500 VA/280 W
minimum switching capacity 170 mW at 10 mA, 17 V
operating rate <= 1200 cycles/hour under load
<= 18000 cycles/hour no-load
mechanical durability 10000000 cycles
electrical durability 100000 cycles for resistive load
average coil consumption in VA 1.2 at 60 Hz
average consumption 1.2 VA at 60 Hz
drop-out voltage threshold >= 0.15 Uc
operate time 20 ms
release time 20 ms
average coil resistance 180 Ohm at 20 °C +/- 15 %
rated operational voltage limits 19.2…26.4 V AC
safety reliability data B10d = 100000
protection category RT I
test levels Level A group mounting
operating position Any position
CAD overall height 79 mm
CAD overall depth 78.45 mm
net weight 0.096 kg
